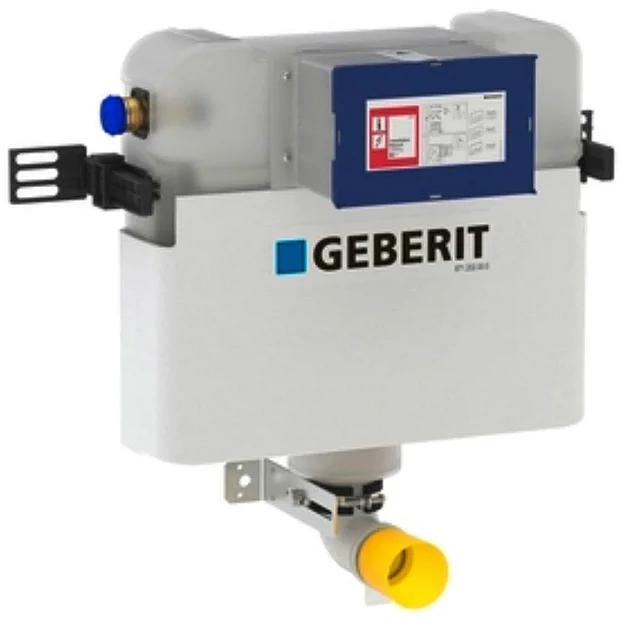

Geberit – UP200 Concealed Dual Flush Cistern

Geberit UP200 Concealed Dual Flush Cistern

The UP200 Dual Flush Cistern is manufactured by Geberit and is designed to be used in concealed installations for Back to wall floor standing WC’s. The Cistern is fully insulated to prevent condensation, and has a protection cover that can be removed for servicing.

The UP200 is designed to be used with Geberit UB200 flush plates, The cistern can be fitted to incoming water supply at left side. Victorian Plumbing offers this amazing Geberit Cistern at a great value for money price.

Product Details

• For concealed installation
• For back to wall floor-standing WCs
• Front actuation
• Installation depth adjustable 18-24.5 cm
• Fully insulated against condensation
• Water supply connection on the left side
• Protection housing for service opening, can be cut to length
• Dual flush with Kappa flush plates
• Dual flush with pneumatic and mechanical buttons
• Single flush with pneumatic buttons
• Connection hose to angle stop valve can be screwed without tools
• Flush bend, welded
• Fast adjustment of the actuator rods for flush plate
• Installation height 820 mm
• To reduce flush volume to either 4.5/3 l dual flush or 4/2.6 l dual flush requires material number 242.310.00.1 (note: must be used with pans designed for low volume flush)
• The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
• Technical data –
• Flow pressure range 0.1-10 bar
• Operating temperature water max.     25 °C
• Flush volume factory setting     5.8 and 3 l
• Flush volume small range     2.6-4 l
